Tag: Oracle dba blog

failed to associate the token : AWS

Posted on by Osama Mustafa in Cloud
Once you create AWS you should activate “Activate MFA on your root account”

and do that you should use your phone (Iphone, Android) download google authenticator app from the app store/Google Play once the installation is done Scan the QR and Enter the code, the code will be change automatically, if the first try not working and you receive this error ” failed to associate the token” uninstall the app and try again.

Thank you
Osama

My Days As an Oracle ACED : BGOUG

Posted on by Osama Mustafa in News
12 – 14 June save the date because it’s Bulgarian Oracle User group Events, this is my first time in Bulgaria and my first time as an oracle ACE director in any events :).

My Trip Planned to be from Jordan to Bulgaria – Sofia  and as usual i need to stop in one of world airport to reach my destinations first which i really hate because it’s wasting of time and tiring me.
my stop was in Frankfurt airport and to be there i had to spent 5-6 hours in the plane to reach there and then wait another 5 hours in the airport and reach Sofia 3 hours in the plane. but lucky me the plane is delayed in Jordan and i waited for 2 hours only :).
I reach Sofia but i was really exhaust and tired from traveling because my trip started early morning and it’s took us 2 hours to reach the hotel from the airport but even with this i have to thanks one of the best organizer i ever seen Milena Gerova She organized everything very well the hotels, the taxi, the appreciation events & sessions.
I had 2 presentation there about Fusion middleware and like usual i organized RAC ATTACK On Saturday, The audience was really amazing and asking very good questions.
I had so much fun in Bulgaria and one of the best events i attended, simply it’s really Green every where you look it’s green, and I learned some Bulgarian dance  because i knew everyone in Bulgaria should dance 🙂 Even Tom Kyte was dancing,Svetoslav and Heli as well so why not ?
It’s really nice to meet old friends and meeting new one  🙂

Cheers
Osama Mustafa

Oracle Streams ORA-44001: invalid schema

Posted on by Osama Mustafa in Database

SQL> SQL> SQL> 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 job finished
  DECLARE
*
ERROR at line 1:
ORA-23616: Failure in executing block 7 for script
13F5CD569383406C82E7F63EE3F927E0 with
ORA-44001: invalid schema
ORA-06512: at “SYS.DBMS_RECO_SCRIPT_INVOK”, line 139
ORA-06512: at “SYS.DBMS_STREAMS_RPC”, line 465
ORA-06512: at “SYS.DBMS_RECOVERABLE_SCRIPT”, line 659
ORA-06512: at “SYS.DBMS_RECOVERABLE_SCRIPT”, line 682
ORA-06512: at “SYS.DBMS_STREAMS_MT”, line 7972
ORA-06512: at “SYS.DBMS_STREAMS_ADM”, line 2674
ORA-06512: at line 5

The error related to apply_queue parameter in oracle stream is not set with valid value, therefore set the parameter correctly like the below

apply_queue_user => ‘STREAM_ADMIN’

Cheers
Osama Mustafa

Oracle SOA Tablespace Is full

Posted on by Osama Mustafa in Fusion Middleware
When Creating Domain for Oracle SOA it’s Mandatory to Run Oracle RCU before to create SOA Repository, This will create tables configuration and information about Oracle SOA.

But What happened the this tablespace was getting full, increase it 20GB is not enough which mean it’s strange case and not acceptable.

after investigation Table Called “REFERENCE_INSTANCE” include information about Running Composite in SOA ans instances. the size for this table 18GB.

Select * from Reference_instance;

Check the data in the above query, just in case you can use export data-bump utility for this table, however after this Truncate the table and from full tablespace toonly 2% usage.

Thank you
Osama Mustafa

Resource temporarily unavailable in tsStartJavaThread

Posted on by Osama Mustafa in Fusion Middleware

Resource temporarily unavailable in tsStartJavaThread (lifecycle.c:1096).
Java heap 3G reserved, 3G committed
Paged memory=3145728/36425712K.
Your Java heap size might be set too high.
Try to reduce the Java heap size using -Xmx: (e.g. “-
java.lang.OutOfMemoryError: Resource temporarily unavailable in tsStartJavaThread (lifecycle.c:1096).
Java heap 6G reserved, 6G committed
Paged memory=3145728/36425712K.
Your Java heap size might be set too high.
Try to reduce the Java heap size using -Xmx:

The Above error appeared on OEDQ when trying to run the process this error related to Java Heap Size the OS control the Heap Size to solve this issue add the below parameters depend on your enviroment  :-

  • Add the following to /etc/sysctl.conf:

kernel.shmmni = 4096
kernel.sem = 256 32000 100 142
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 4194304
net.core.rmem_max = 4194304
net.core.wmem_default = 4194304
net.core.wmem_max = 4194304
fs.file-max = 134283264
fs.aio-max-nr = 1048576
vm.min_free_kbytes = 512000

  • Add the following to /etc/security/limits.conf:

oracle soft nproc 16384
oracle hard nproc 63536
oracle soft nofile 16384
oracle hard nofile 63536

  •  Add the following to /etc/pam.d/login:

session required /lib/security/pam_limits.so

Thank you
Osama Mustafa

Oracle Application Adapter installation.

Posted on by Osama Mustafa in Fusion Middleware
Regarding to Oracle Documentation :-

The Application Adapter installer for 11g Release 1 (11.1.1.3.0) is applicable for the Oracle Service-Oriented Architecture (SOA) Suite and Oracle Service Bus (OSB). The Application Adapters that are installed can be used with Business Process Execution Language (BPEL), Mediator, Business Process Management (BPM), and OSB components. Using this installer, Application Adapters can be installed in a standalone SOA environment, standalone OSB environment, or mixed (SOA and OSB) environment.

You can check from here

The installation is not that hard , it’s all about configuration. i will post about later.

You Can Download it from here.

Operating system : Oracle Linux.

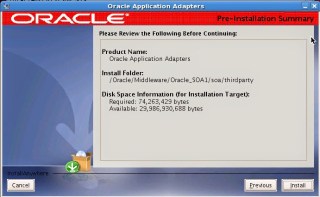

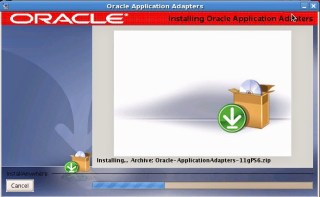

Installation Steps :-

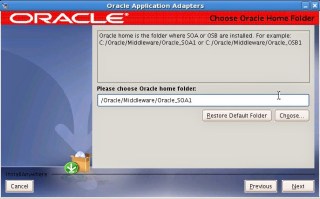

As You see you should installed Oracle SOA Or Oracle OSB.
If you are using Oracle SOA the path will be like the below :-
\Oracle_SOA1\
For Oracle OSB :-
\Oracle_OSB1\
Be Notice this application installed in the following Path :-
\Oracle_SOA1\soa\thirdparty\ApplicationAdapters\
Thank you
Osama mustafa

Extend LVM Disk Linux

Posted on by Osama Mustafa in Operating system
This Article Will Describe step by step how to extend LVM Disk On Linux :-

1- After adding New Harddisk to the server you have to ReScan The Scsi using

echo “- – -” > /sys/class/scsi_host/host?/scan

? :- Depend on you host number.

2-  Use Fdisk to create new partition.

>fdisk -l
Disk /dev/sda: 107.3 GB, 107374182400 bytes
255 heads, 63 sectors/track, 13054 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1          13      104391   83  Linux
/dev/sda2              14       13054   104751832+  8e  Linux LVM
Disk /dev/sdb: 10.7 GB, 10737418240 bytes
255 heads, 63 sectors/track, 1305 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk /dev/sdb doesn’t contain a valid partition table

 Check the below :-

#fdisk /dev/sdb
Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklab el
Building a new DOS disklabel. Changes will remain in memory only,
until you decide to write them. After that, of course, the previous
content won’t be recoverable.

The number of cylinders for this disk is set to 1305.
There is nothing wrong with that, but this is larger than 1024,
and could in certain setups cause problems with:
1) software that runs at boot time (e.g., old versions of LILO)
2) booting and partitioning software from other OSs
(e.g., DOS FDISK, OS/2 FDISK)
Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)

Command (m for help): n
Command action
e extended
p primary partition (1-4)
p
Partition number (1-4): 1
First cylinder (1-1305, default 1):
Using default value 1
Last cylinder or +size or +sizeM or +sizeK (1-1305, default 1305):
Using default value 1305

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.

WARNING: Re-reading the partition table failed with error 16: Device or resource busy.
The kernel still uses the old table.
The new table will be used at the next reboot.
Syncing disks.

3-  Lets start increasing :-

pvcreate /dev/sdb1
Writing physical volume data to disk “/dev/sdb1”
Physical volume “/dev/sdb1” successfully created

vgdisplay
— Volume group —
VG Name Oracle
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 4
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 3
Open LV 3
Max PV 0
Cur PV 1
Act PV 1
VG Size 99.88 GB
PE Size 32.00 MB
Total PE 3196
Alloc PE / Size 3196 / 99.88 GB
Free PE / Size 0 / 0
VG UUID MZ04D3-jZLy-0BWi-2WSP-oi9E-hBkl-e3a08d

vgextend Oracle /dev/sdb1  Volume group “Oracle” successfully extended

 pvscan
  PV /dev/sda2   VG Oracle   lvm2 [99.88 GB / 0    free]
  PV /dev/sdb1   VG Oracle   lvm2 [9.97 GB / 9.97 GB free]
  Total: 2 [109.84 GB] / in use: 2 [109.84 GB] / in no VG: 0 [0   ]

###

lvdisplay
— Logical volume —
LV Name /dev/Oracle/LogVol00
VG Name Oracle
LV UUID wKMZ16-LHsc-ktsc-3dTT-ieiq-pEfT-tODhqc
LV Write Access read/write
LV Status available
# open 1
LV Size 9.75 GB
Current LE 312
Segments 1
Allocation inherit
Read ahead sectors auto
– currently set to 256
Block device 253:0

— Logical volume —
LV Name /dev/Oracle/LogVol02
VG Name Oracle
LV UUID UabZCO-G8ID-dh1a-xv6t-Ss4O-QqEx-fnIy5g
LV Write Access read/write
LV Status available
# open 1
LV Size 82.34 GB
Current LE 2635
Segments 1
Allocation inherit
Read ahead sectors auto
– currently set to 256
Block device 253:1

— Logical volume —
LV Name /dev/Oracle/LogVol01
VG Name Oracle
LV UUID 78Y3bv-UZZI-Iu2w-gAyD-HXe1-Fx25-gmGuKn
LV Write Access read/write
LV Status available
# open 1
LV Size 7.78 GB
Current LE 249
Segments 1
Allocation inherit
Read ahead sectors auto
– currently set to 256
Block device 253:2

Now Let’s Extend :-

lvextend /dev/Oracle/LogVol00 /dev/sdb1 Extending logical volume LogVol00 to 19.72 GB
Logical volume LogVol00 successfully resized

 Finally :-

resize2fs /dev/Oracle/LogVol00resize2fs 1.39 (29-May-2006)
Filesystem at /dev/Oracle/LogVol00 is mounted on /; on-line resizing required
Performing an on-line resize of /dev/Oracle/LogVol00 to 5169152 (4k) blocks.

Notes :

  1. The Red Color for Command Line.
  2. The Brown Color For necessary Output.
  3. /dev/Oracle/LogVol00 it’s the name for LVM Disk.
  4. /dev/sdb1 disk that we created using fdisk.

Thank you
Osama Mustafa

java.lang.ClassNotFoundException: oracle.dms.wls.DMSServletFilter

Posted on by Osama Mustafa in Fusion Middleware
This Error Appeared while trying to start managed Server “edq_server1” , The starting results it’s completed with successfully status but some deployment end with Failed status , which mean edq_server will not work correctly, therefore i checked the logs which the below error :-

Caused By: java.lang.ClassNotFoundException: oracle.dms.wls.DMSServletFilter
        at weblogic.utils.classloaders.GenericClassLoader.findLocalClass(GenericClassLoader.java:297)
        at weblogic.utils.classloaders.GenericClassLoader.findClass(GenericClassLoader.java:270)
        at weblogic.utils.classloaders.ChangeAwareClassLoader.findClass(ChangeAwareClassLoader.java:64)
        at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
        at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
        at weblogic.utils.classloaders.GenericClassLoader.loadClass(GenericClassLoader.java:179)
        at weblogic.utils.classloaders.ChangeAwareClassLoader.loadClass(ChangeAwareClassLoader.java:43)
        at weblogic.servlet.internal.WebComponentContributor.getNewInstance(WebComponentContributor.java:224)

To solve this error :-

cd /u01/app/oracle/product/fmw/wlserver_10.3/common/nodemanager
vi nodemanager.properties

And search for

StartScriptEnabled=false

change it to

StartScriptEnabled=true

Restart Node manager and try again.
Thank you
Osama Mustafa
